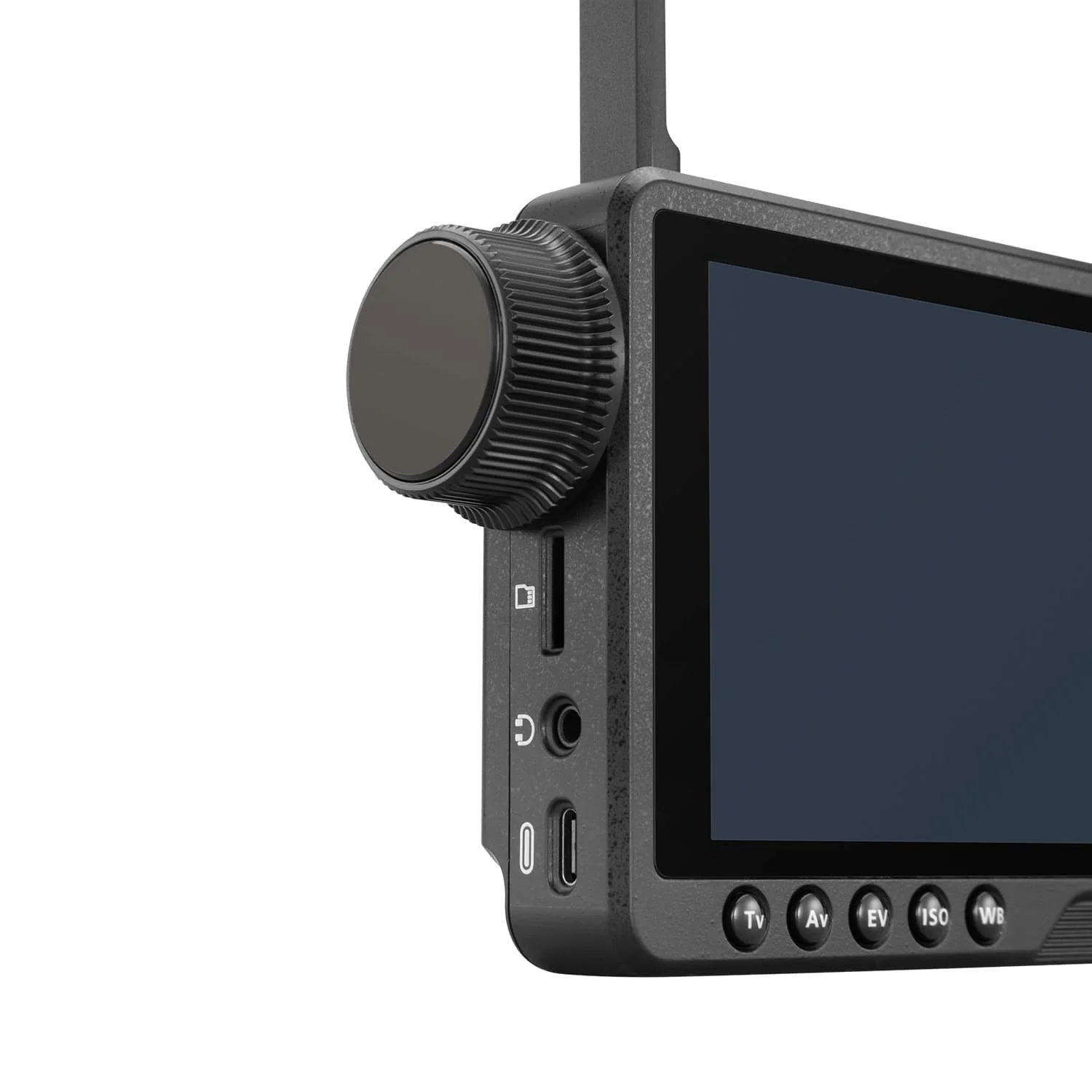

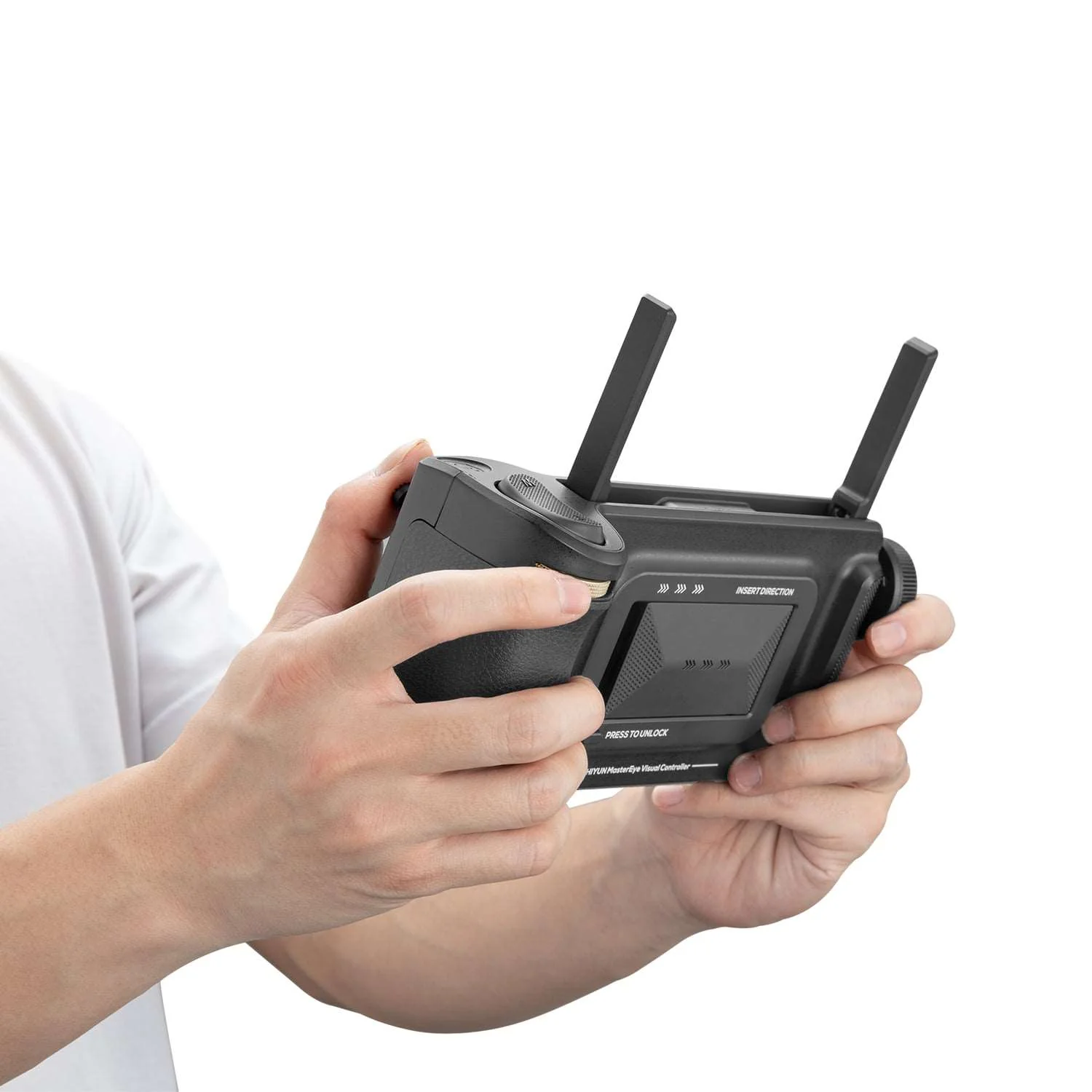

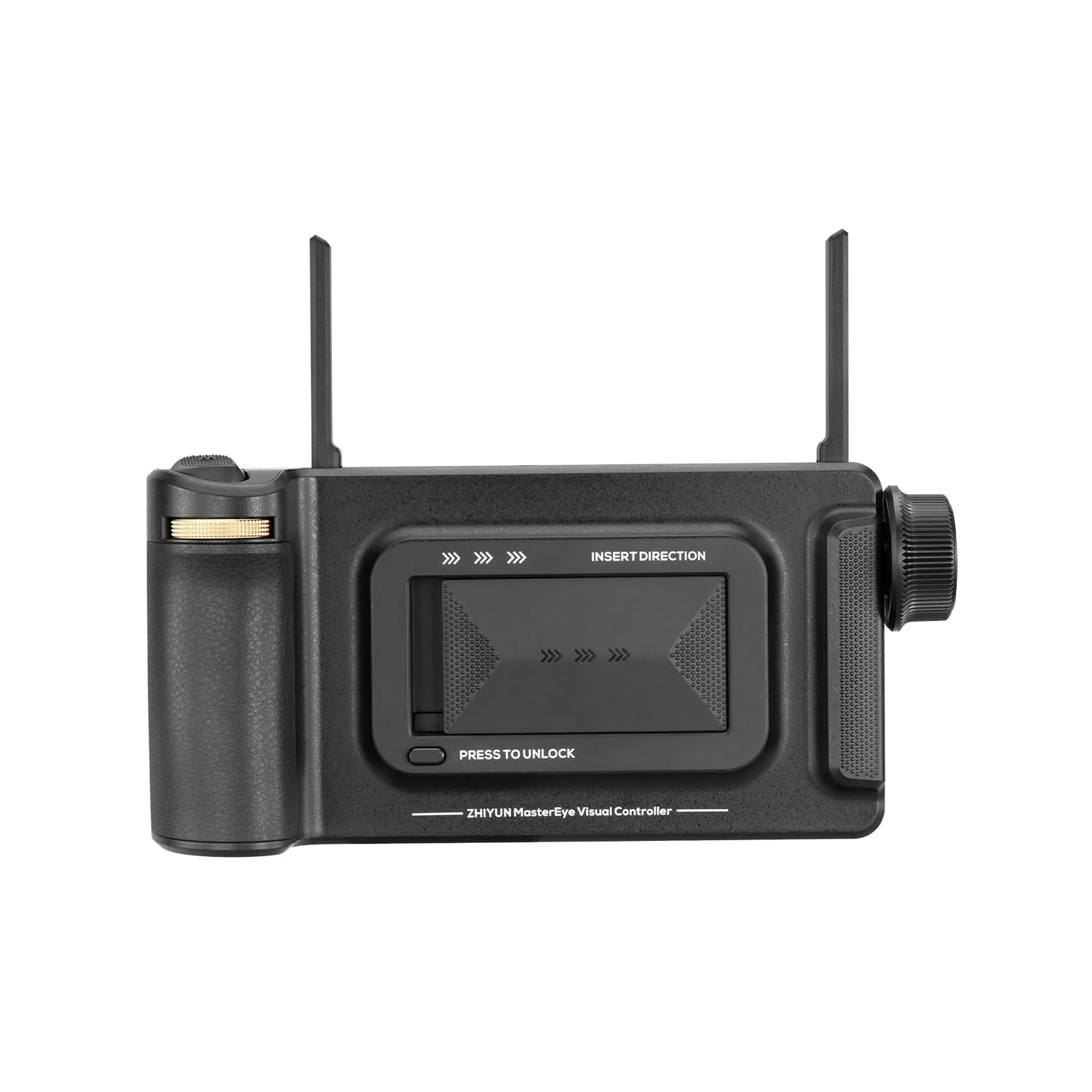

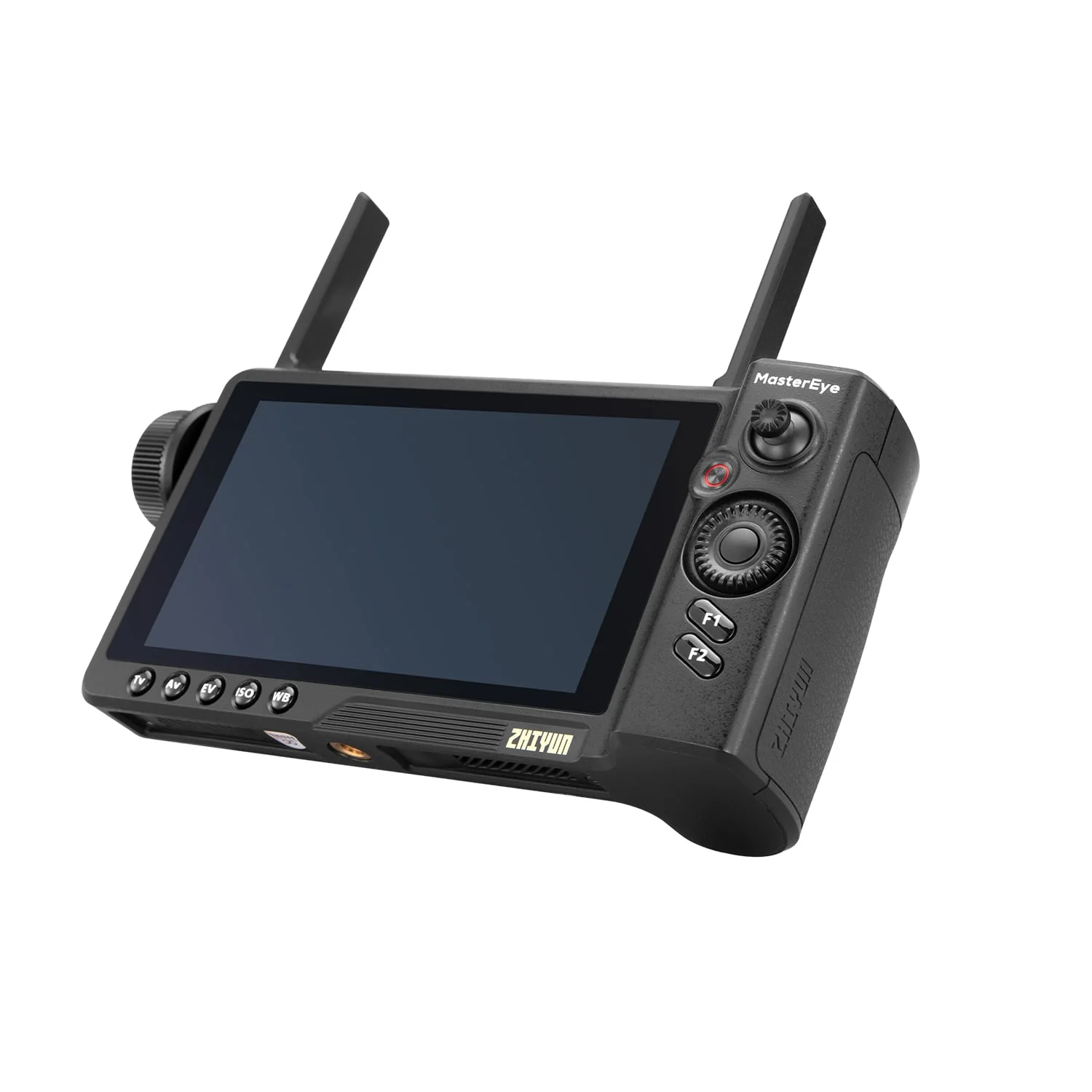

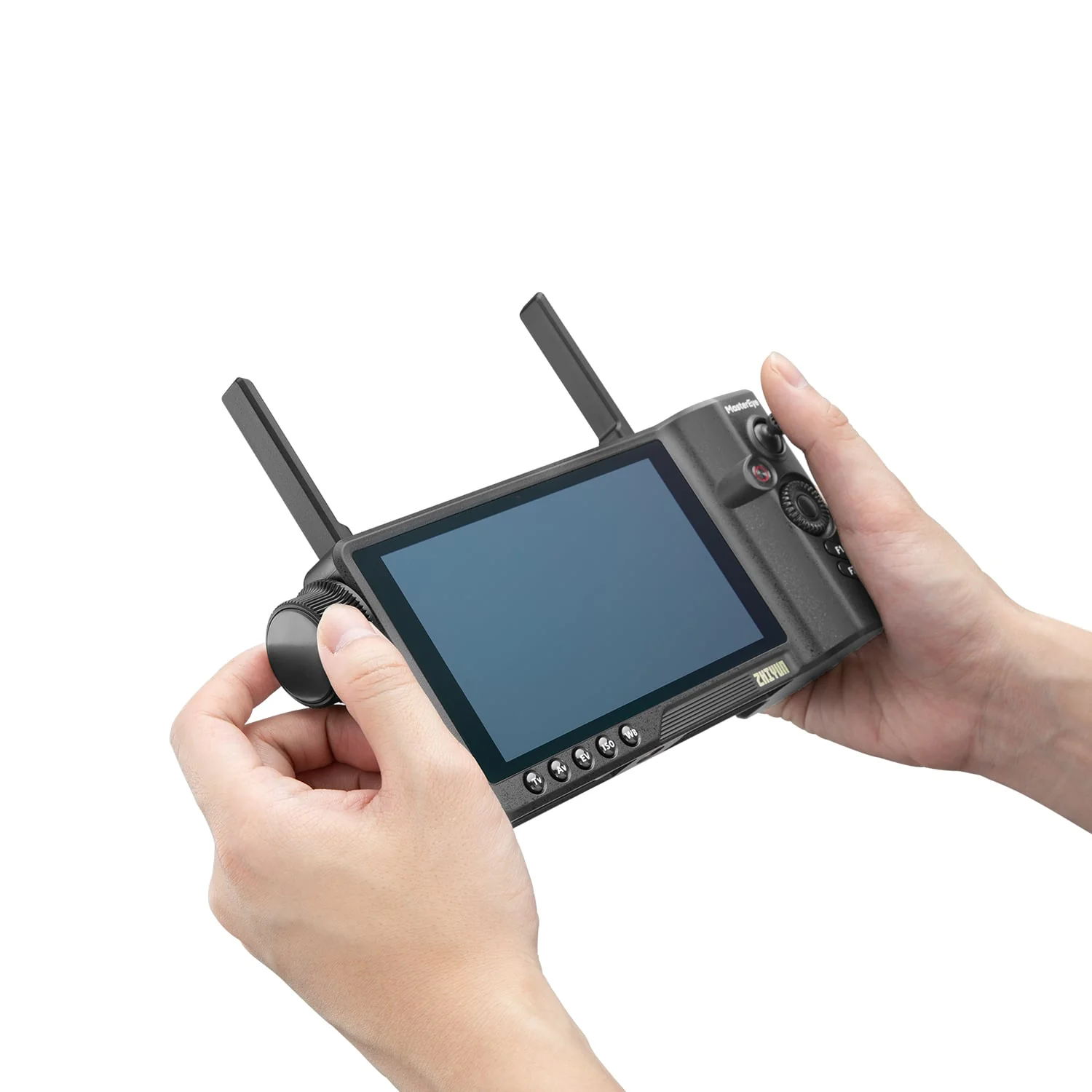

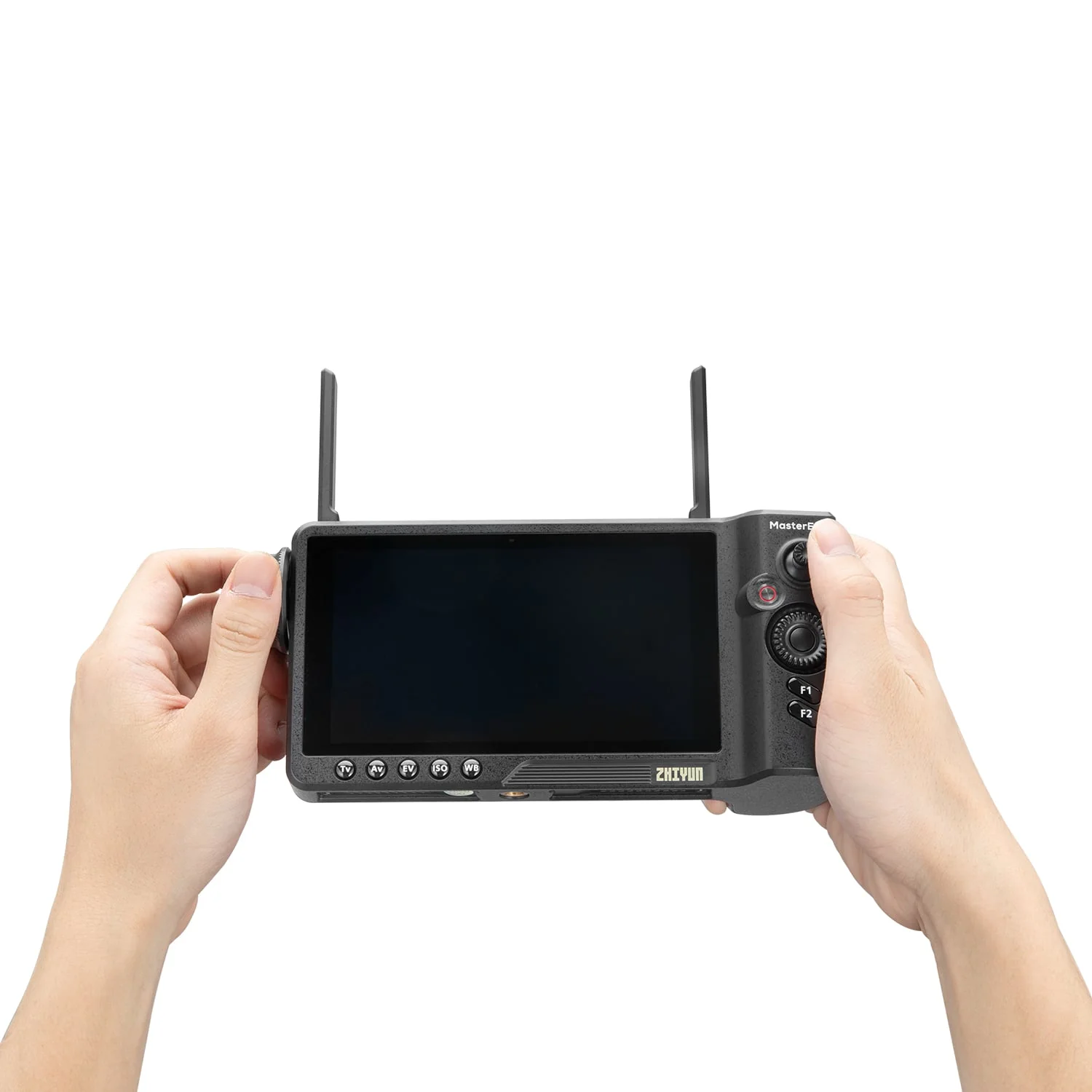

MasterEye Visual Controller VC100
Immerse Yourself in Vivid Footage
Transform Filmmaking Works into A Hub of Productivity
With the monitor, wireless video receiver and remote control integrated in one device, MasterEye Visual Controller VC100 is gifted at performance and compatibility. Ergonomically-designed handgrip, snug silicone for better quality, simplified installation and connection, as well as auto pairing, all features contribute to your filmmaking in the wake of teamwork efficiency.Always Stay Bright and Vivid
To achieve crisp and sheer image, the MasterEye Visual Controller is upgraded with 400PPI, 1200:1 contrast ratio and 1000nit peak brightness. Auto-adjustment of screen brightness according to the environment is available or you may manually adjust it according to your needs.
Larger Storage Support
The MasterEye Visual Controller supports Micro SD card to max 128GB capacity with write speed exceeding 10MB/s, transfer speed of Class 10 and above or microSD card with UHS-1 rating.
Offers 1080P high-quality recording backups and local album playback. Offers 3.5mm headphone port for real-time audio monitoring in scenes with conversations and audio ( this feature can only be achieved when using with transmitter 2.0, transmitter AI doesn't support this ).
Accurate Focus/Zoom Control and Motion Sensor Control
Product Specifications
Screen Recording & Audio Monitoring
Accurate Focus/Zoom Control and Motion Sensor Control
Product Specifications
| Rated Power | 3W |
| Rated Voltage | 11.1V |
| Charging Voltage (Type-C Port) | 4.9V~20V |
| Charging Current (Type-C Port) | 20mA~3A |
| Internal Battery Runtime | 8hr |
| Internal Battery Charging Time | 110min |
| Internal Battery Capacity | 2200mAh |
| External Battery Input Voltage | 6V~8.4V |
| Output Resolution | 1080P/720P/576P/480P |
| Output Frame Rate | 60/59.94/50/30/29.97/25/24/23.98fps |
| Image Transmission Latency | 60ms |
| Operation Frequency | 5.725GHz-5.825GHz |
| 5.15GHz-5.25GHz（For Japan) | |
| Equivalent Isotropically Radiated Power (EIRP) | 5.15GHZ-5.25GHZ <23DBM（CE） |
| 5.725GHZ-5.825GHZ <14DBM（CE） | |
| 5.15GHZ-5.25GHZ <24DBM（FCC） | |
| 5.725GHZ-5.825GHZ <30DBM（FCC） | |
| 5.15GHZ-5.25GHZ <23DBM（SRRC） | |
| 5.725GHZ-5.825GHZ <27DBM（SRRC） | |
| Transmission Distance | 150 meters |
| Antenna Rotation Angle | 0° ~90° |
| Screen Dimensions | 5.5 inch |
| Screen Resolution | 1920*1080 |
| Screen Aspect Ratio | 16:9 |
| Screen Brightness | 1000 nits |
| Recording Resolution/Frame | Current Resolution/Frame Rate of the Image Transmission |
| Screen Viewing Angle | 80° |
| Supported Micro SD Card Types | Max 128 GB storage, write speed ≥10MB/s, transfer speed of Class 10 and above or microSD card with UHS-1 rating |
| Supporting File System | FAT32 |
| Operating Temperature | -10℃ ~45℃ |
| Product Net Weight | ~450g |
| Dimensions with Expanded Antenna | 203*72*154mm (L*W*H) |
| Dimensions with Folded Antenna | 203*72*92mm (L*W*H) |
What's in the Box
| ZHIYUN MasterEye Visual Controller VC100 * 1 |
| USB Type-C cable * 1 |
| User Manual * 1 |
$104.70
Original: $349.00
-70%MasterEye Visual Controller VC100—
$349.00
$104.70Product Information
